- Country
- United States of America (USA)
- Manufacturer / Brand
- Atwater Kent Mfg. Co.; Philadelphia, USA
- Year
- 1935/1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 160993
- Number of Tubes
- 7
- Main principle
- Superhet with RF-stage; ZF/IF 472.5 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Short Wave(s) and Police.
- Power type and voltage
- Alternating Current supply (AC) / 115 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8.5 inch = 21.6 cm
- Power out
- 3.3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 637 - Atwater Kent Mfg. Co.;
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 14 x 18 x 9 inch / 356 x 457 x 229 mm
- Notes
-

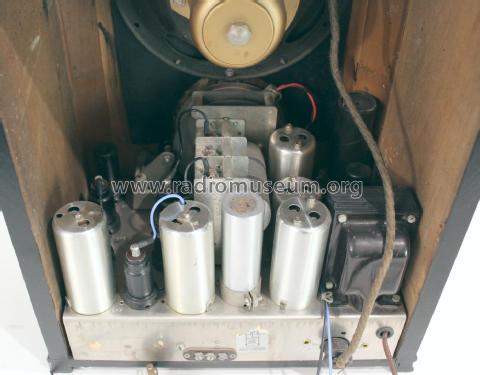

The chassis used for this model is used by model 717 (console). Models AK 317 and 337 chassis are identical but for the dial arrangement. Atwater Kent introduced what he called the 'ARROW-LITE' tuning with 'Rainbow Dial' for the 1936 models. Riders index does list model 637, but points to 317/337 (no particular sheet for 637). Slusser dates to 1932, although the 317 and 337 are dated 1935, Machine Age even to 1936.
- Source of data
- Machine Age to Jet Age III
- Mentioned in
- Collector's Guide to Antique Radios (7th Edition) (& Blast of the Past)
- Literature/Schematics (1)
- Rider's Perpetual, Volume 6 = 1935 and before (Riders 6 and 7, see under 317/337)
- Literature/Schematics (2)
- Cathedral & Tombstone Radios (page 58.)
- Author
- Model page created by Dave McClellan. See "Data change" for further contributors.
