- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Atwater Kent (Brand), C & A Odlin & Co. Ltd; Wellington
- Year
- 1933
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 349157
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 472 kHz
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch
- Material
- Wooden case
- from Radiomuseum.org
- Model: 708 - Atwater Kent Brand, C & A
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 417 x 367 x 259 mm / 16.4 x 14.4 x 10.2 inch
- Notes
-
8-valve all-wave superhet with RF stage table model receiver with BC, Police & 2 SW bands.
See also USA version Model 708 and console version Model 808.
- Price in first year of sale
- 29.50 NZ £
- Mentioned in
- -- Original prospect or advert (Hawkes Bay Tribune 6 September 1933 Page 5)
- Literature/Schematics (1)

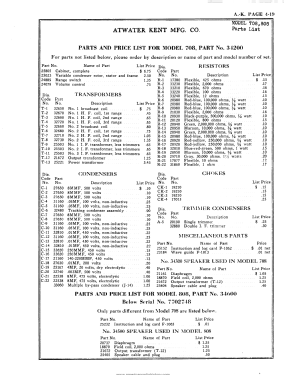

- Rider's Perpetual, Volume 4 = ca. 1934 and before (Pages 4-17 to 4-20)
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
