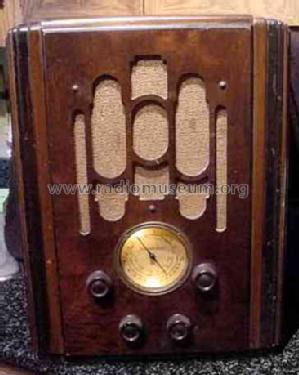

Atwater Kent Mfg. Co: P755 [Radio] ID = 349420 367x459
Select picture or schematic to display from thumbnails on the right and click for download.
For model P755, Atwater Kent Mfg. Co.; Philadelphia, USA

Country:  United States of America (USA)
Manufacturer / Brand:  Atwater Kent Mfg. Co.; Philadelphia, USA
Year: 1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6A7 6D6 75 42 80
Main principle Superheterodyne (common); ZF/IF 264 kHz
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 115 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: P755 - Atwater Kent Mfg. Co.;
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
External source of data Ernst Erb
Circuit diagram reference Rider's Perpetual, Volume 7 = 1936 and before
