• Año
  • 1930
  • Categoría
  • Radio - o Sintonizador pasado WW2
  • Radiomuseum.org ID
  • 361986

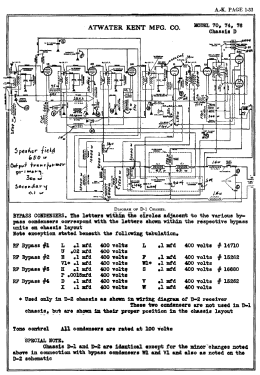

Haga clic en la miniatura esquemática para solicitarlo como documento gratuito.

 Especificaciones técnicas

  • Numero de valvulas
  • 8
  • Principio principal
  • RFS sin reacción; Screengrid 1926-1935
  • Número de circuitos sintonía
  • 4 Circuíto(s) AM
  • Gama de ondas
  • OM (onda media) solamente
  • Tensión de funcionamiento
  • Red: Corriente alterna (CA, Inglés = AC) / 50Hz, 230 Volt
  • Altavoz
  • Altavoz electrodinámico (bobina de campo)
  • Material
  • Madera
  • de Radiomuseum.org
  • Modelo: Table 74 - Atwater Kent Brand, C & A
  • Forma
  • Consola baja, patas más cortas del 50%.
  • Anotaciones
  • Atwater Kent 74 Table

    8-valve TRF without generation, screengrid. Table cabinet with enclosed back panel.

    See also USA version Atwater Kent 74 Console Table and New Zealand Atwater Kent 70L Console with the same chassis.

    Choice of 4 Chassis types in 6 versions for different speakers and various supplies:
    D-1 and D-2, 7 tubes, DC, dyn.Speaker
    F, 8 tubes, AC, dyn.speaker
    L-1 and L-2, 8 tubes, AC, dyn.speaker
    P, 8 tubes, AC, dyn.speaker
    Since the outer look can only show the Cabinet type but not the chassis, the latter are listed separately. See the individual chassis types as listed above.

    Made in the USA

  • Mencionado en
  • -- Original prospect or advert (Daily Telegraph (Napier) 16 October 1930 Page 15)
  • Autor
  • Modelo creado por Brian Stevens. Ver en "Modificar Ficha" los participantes posteriores.
