• Country
• Hungary

• Manufacturer / Brand
• Audio Kino és Hangtechnikai Vállalat, Budapest

• Year
• 1957 ?

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 155746

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6AU6 6AU6 6AU6 ECH42 EAF42 6X4

• Main principle
• Audio-Amplification

• Wave bands
• Broadcast only (MW).

• Details
• Other Combination - see Notes

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 150; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: Audio Amplifier AK 302 - Audio Kino és Hangtechnikai

• Shape
• Tablemodel, with any shape - general.

• Notes
• Cinema amplifier, with radio and turntable, out: 1,55 V. ...

• Literature/Schematics (1)

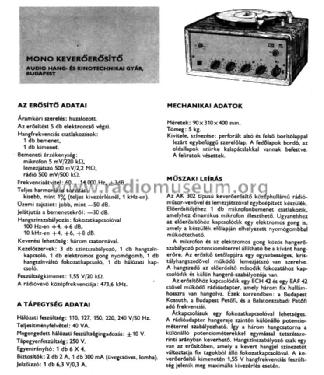

• Kádár Géza, Rádióvevökészülékek kapcsolása II. 1956-1959

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
