Hotpoint Bandmaster A75MB

Hotpoint Bandmaster A75MB; Australian General (ID = 2613357) Radio Hotpoint Bandmaster A75MB; Australian General (ID = 2613358) Radio

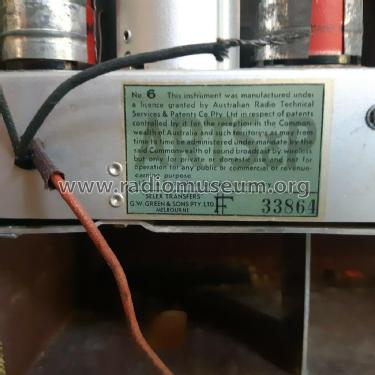

Hotpoint Bandmaster A75MB; Australian General (ID = 2613359) Radio Hotpoint Bandmaster A75MB; Australian General (ID = 2613360) Radio
Use red slider bar for more.
Hotpoint Bandmaster A75MB; Australian General (ID = 2613357) Radio
Australian General: Hotpoint Bandmaster A75MB [Radio] ID = 2613357 1400x1029
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hotpoint Bandmaster A75MB, Australian General Electric (GE Company Australia Ltd., Associated, AGE, Bandmaster, Hotpoint), Sydney:
Ebay-au_203253311097

Country:  Australia
Manufacturer / Brand:  Australian General Electric (GE Company Australia Ltd., Associated, AGE, Bandmaster, Hotpoint), Sydney
alternative name

General Electric Company of Australia Ltd.
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 1A7GT 1N5GT 1N5GT 1H5GT 1Q5GT
Main principle Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 90 & 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Hotpoint Bandmaster A75MB - Australian General Electric GE
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Notes

See also AWA Radiola Model 62.

"A" Battery, 1.5 V, Eveready PR8 or equivalent.
"B" Battery, 90 V, two by Eveready PR45 or equivalent.

Literature/Schematics (1) Australian Official Radio Service Manual AORSM (Volume 3, 1940 (for 1939 models), Page 105 (for AWA 62).)

Model page created by Martin Kent. See "Data change" for further contributors.
