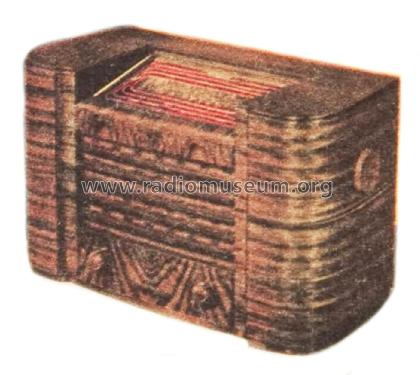

Hotpoint Bandmaster C56SE

Country:  Australia
Manufacturer / Brand:  Australian General Electric (GE Company Australia Ltd., Associated, AGE, Bandmaster, Hotpoint), Sydney
alternative name

General Electric Company of Australia Ltd.
Year: 1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 6U7G 6J8G 6U7G 6B8G 6V6G 5Y3G
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 200-230; 230-260 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 7 inch = 17.8 cm
Power out 4.2 W (undistorted)
from Radiomuseum.org Model: Hotpoint Bandmaster C56SE - Australian General Electric GE
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes

This model has seven bands including the broadcast band.

It is similar to the AWA Radiola model 701.

Mentioned in Mingay's "Radio Diagram & I.F. Index
Literature/Schematics (1) Australian Official Radio Service Manual, volume 4, page 184.

Model page created by Stuart Irwin. See "Data change" for further contributors.
