Hotpoint-Bandmaster 278DB

Hotpoint-Bandmaster 278DB; Australian General (ID = 755335) Radio

Hotpoint-Bandmaster 278DB; Australian General (ID = 755336) Radio

Hotpoint-Bandmaster 278DB; Australian General (ID = 755338) Radio
Use red slider bar for more.
Hotpoint-Bandmaster 278DB; Australian General (ID = 755335) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Australia
Manufacturer / Brand:  Australian General Electric (GE Company Australia Ltd., Associated, AGE, Bandmaster, Hotpoint), Sydney
alternative name

General Electric Company of Australia Ltd.
Year: 1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 1D5G 1C7G 1D5G 1D5G 1F7G 1E5G 1J6G
Main principle Superhet with RF-stage; ZF/IF 460 kHz; 3 AF stage(s)
Tuned circuits 9 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Storage and/or dry batteries / 135 & 2 & -1.5 & -3 & -9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Hotpoint-Bandmaster 278DB - Australian General Electric GE
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes This radio uses the same chassis as the AWA Radiola model 267B.

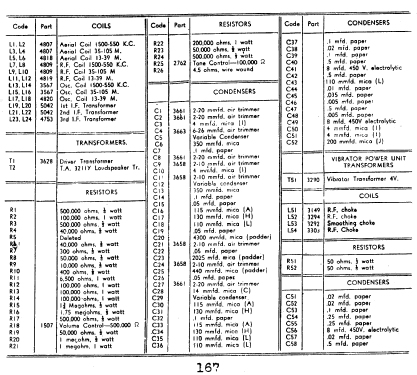

Circuit diagram reference Australian Official Radio Service Manual Vol. I I
Literature/Schematics (1) Mingay's Radio Diagram & I.F. Index

Model page created by Stuart Irwin. See "Data change" for further contributors.
