Hotpoint-Bandmaster H7 H74MA

Hotpoint-Bandmaster H7 H74MA; Australian General (ID = 2377036) Radio Hotpoint-Bandmaster H7 H74MA; Australian General (ID = 2377037) Radio
Hotpoint-Bandmaster H7 H74MA; Australian General (ID = 1957562) Radio Hotpoint-Bandmaster H7 H74MA; Australian General (ID = 1957561) Radio
Use red slider bar for more.
Hotpoint-Bandmaster H7 H74MA; Australian General (ID = 2377036) Radio

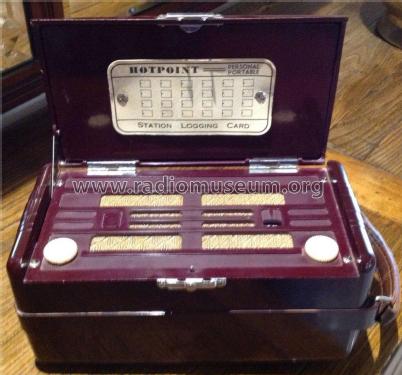

Australian General: Hotpoint-Bandmaster H7 H74MA [Radio] ID = 2377036 1400x1151
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hotpoint-Bandmaster H7 H74MA, Australian General Electric (GE Company Australia Ltd., Associated, AGE, Bandmaster, Hotpoint), Sydney

Country:  Australia
Manufacturer / Brand:  Australian General Electric (GE Company Australia Ltd., Associated, AGE, Bandmaster, Hotpoint), Sydney
alternative name

General Electric Company of Australia Ltd.
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: 1R5 1T4 1S5 3S4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 67.5 & 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3.5 inch = 8.9 cm
Power out 0.07 W (undistorted)
from Radiomuseum.org Model: Hotpoint-Bandmaster H7 H74MA - Australian General Electric GE
Material Moulded (Bakelite or Plastics)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 232 x 110 x 113 mm / 9.1 x 4.3 x 4.4 inch
Notes

This model is the same as the AWA Radiola model 450P.

It was available in four colours: Ivory, Burgundy, Walnut and Black.  However, the lid and case colours could be mixed, making 16 available colour combinations.

Battery types used: (A) 1½ V Eveready 950 or Diamond 3950 (D Cell) & (B) 67½ V Eveready Mini-Max 467 or Diamond 3467.

Net weight (2.2 lb = 1 kg) 5 lb (5 lb 0 oz) / 2.270 kg
Price in first year of sale 19.95 AUS £
Circuit diagram reference Australian Official Radio Service Manual Vol. VII
Literature/Schematics (1) Australian Official Radio Service Manual AORSM (Volume 7, 1949, Page 195.)
Literature/Schematics (2) Mingay's "Radio Diagram & I.F. Index

Model page created by Stuart Irwin. See "Data change" for further contributors.
