Hotpoint-Bandmaster Q55DA

Hotpoint-Bandmaster Q55DA; Australian General (ID = 2346946) Radio

Hotpoint-Bandmaster Q55DA; Australian General (ID = 2346947) Radio
Use red slider bar for more.
Hotpoint-Bandmaster Q55DA; Australian General (ID = 2346946) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Australia
Manufacturer / Brand:  Australian General Electric (GE Company Australia Ltd., Associated, AGE, Bandmaster, Hotpoint), Sydney
alternative name

General Electric Company of Australia Ltd.
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 1R5 1T4 1T4 1S5 3V4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Storage and/or dry batteries / 90 & 1.5 or 90 & 4 or 4 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: Hotpoint-Bandmaster Q55DA - Australian General Electric GE
Material Bakelite case
Shape Tablemodel, with any shape - general.
Notes This model could be powered from dry batteries only, dry batteries (90V) and a 4 volt accumulator, or a 4 volt accumulator only with a synchronous vibrator unit. It uses the same chassis as the AWA Radiola model 515M.

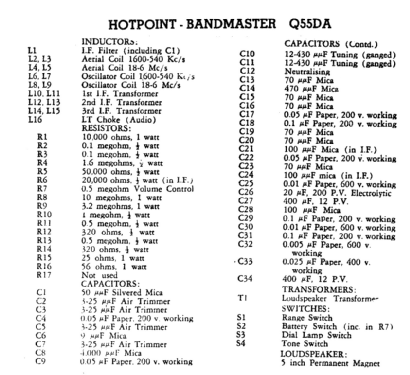

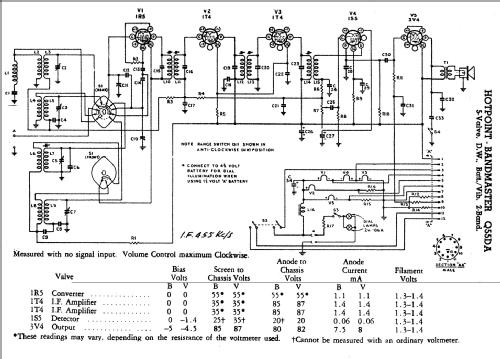

Circuit diagram reference Australian Official Radio Service Manual Vol. VII

Model page created by Stuart Irwin. See "Data change" for further contributors.
