Hotpoint K3 K35DM K35DV6

Hotpoint K3 K35DM; Australian General (ID = 2411406) Radio
Use red slider bar for more.
Hotpoint K3 K35DM; Australian General (ID = 2411406) Radio

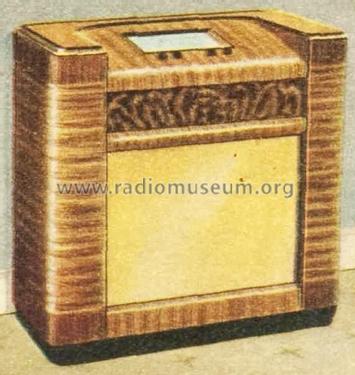

Australian General: Hotpoint K3 K35DM [Radio] ID = 2411406 1400x1478
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hotpoint K3 K35DM K35DV6, Australian General Electric (GE Company Australia Ltd., Associated, AGE, Bandmaster, Hotpoint), Sydney:
The Australian Women's Weekly, 24/2/51, Page 14.

Country:  Australia
Manufacturer / Brand:  Australian General Electric (GE Company Australia Ltd., Associated, AGE, Bandmaster, Hotpoint), Sydney
alternative name

General Electric Company of Australia Ltd.
Year: 1951–1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 1T4 1R5 1T4 1S5 3V4
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
Power out
from Radiomuseum.org Model: Hotpoint K3 K35DM [K35DV6] - Australian General Electric GE
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Notes

This model uses a type 22770 synchronous vibrator power unit.

Also available in dry battery, 4 volt accumulator & 4 volt vibrator models, K35DA, K35DB & K35DV4.

See also 6 volt vibrator version of AWA Radiola model 731C.

Price in first year of sale 74.45 AUS £
Circuit diagram reference Australian Official Radio Service Manual Vol. X
Literature/Schematics (1) Australian Official Radio Service Manual AORSM (Volume 10, 1952, Page 160.)

Model page created by Stuart Irwin. See "Data change" for further contributors.
