- Country
- Australia
- Manufacturer / Brand
- Australian General Electric (GE Company Australia Ltd., Associated, AGE, Bandmaster, Hotpoint), Sydney
- Year
- 1949/1950
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 191682
-
- alternative name: General Electric Company of Australia Ltd.
- Number of Tubes
- 5
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Storage and/or dry batteries / 2 x 45 & 4 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 inch = 17.8 cm
- Power out
- 0.2 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

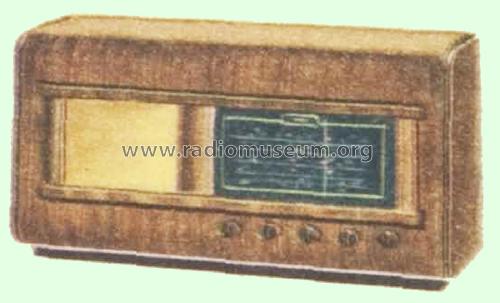

- Model: Hotpoint T5 T55DM [T55DB] - Australian General Electric GE
- Shape
- Tablemodel, with any shape - general.
- Notes
-
Based on the 4 volt accumulator version of AWA Radiola model 619T.
A 4 volt accumulator is used for the L.T.
See also dry battery, 4 & 6 volt vibrator versions, models T55DA, T55DV4 & T55DV6.
- Price in first year of sale
- 38.35 AUS £
- Circuit diagram reference
- Australian Official Radio Service Manual Vol. X
- Literature/Schematics (1)
- Australian Official Radio Service Manual AORSM (Volume 10, 1952, Page 155.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
