Hotpoint V55DD

Hotpoint V55DD; Australian General (ID = 2235556) Radio Hotpoint V55DD; Australian General (ID = 2235557) Radio
Hotpoint V55DD; Australian General (ID = 2235558) Radio
Use red slider bar for more.
Hotpoint V55DD; Australian General (ID = 2235556) Radio
Australian General: Hotpoint V55DD [Radio] ID = 2235556 1400x998
Select picture or schematic to display from thumbnails on the right and click for download.
For model Hotpoint V55DD, Australian General Electric (GE Company Australia Ltd., Associated, AGE, Bandmaster, Hotpoint), Sydney:

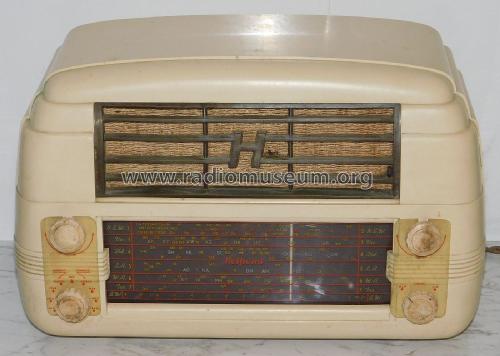

Hotpoint model V55DD. Knobs and speaker grille have deteriorated, as is common with these models.

Country:  Australia
Manufacturer / Brand:  Australian General Electric (GE Company Australia Ltd., Associated, AGE, Bandmaster, Hotpoint), Sydney
alternative name

General Electric Company of Australia Ltd.
Year: 1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6BA6 6BE6 6BA6 6AV6 6AQ5
Main principle Superhet with RF-stage; ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Direct Current supply (DC) / 32 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm
Power out
from Radiomuseum.org Model: Hotpoint V55DD - Australian General Electric GE
Material Moulded (Bakelite or Plastics)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 400 x 250 x 240 mm / 15.7 x 9.8 x 9.4 inch
Notes This model is designed for use on 32 volt farm lighting systems and uses a synchronous vibrator power unit. It uses the same chassis as the AWA Radiola model 532MF.
Circuit diagram reference Australian Official Radio Service Manual Vol. X

Model page created by Stuart Irwin. See "Data change" for further contributors.
