Midget

Midget ; Autocrat Radio Co.; (ID = 1554207) Radio
Use red slider bar for more.
Midget ; Autocrat Radio Co.; (ID = 1554207) Radio

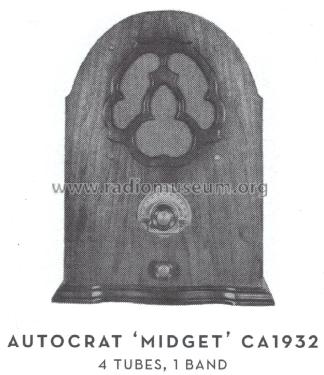

Autocrat Radio Co.;: Midget [Radio] ID = 1554207 933x1079
Select picture or schematic to display from thumbnails on the right and click for download.
For model Midget, Autocrat Radio Co.; Chicago (IL):
Image courtesy of Mark V. Stein for Radiomuseum.org use only. Cathedral and Tombstone Radios.

Country:  United States of America (USA)
Manufacturer / Brand:  Autocrat Radio Co.; Chicago (IL)
Year: 1932 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4:
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Wave bands Broadcast only (MW).
Details
Loudspeaker -Loudspeaker incorporated, but system not known.
Power out
from Radiomuseum.org Model: Midget - Autocrat Radio Co.; Chicago IL
Material Wooden case
Shape Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
Source of data Machine Age to Jet Age II
Mentioned in Cathedral & Tombstone Radios

Model page created by Hans-Joachim Korn † 16.11.15. See "Data change" for further contributors.



All listed radios etc. from Autocrat Radio Co.; Chicago (IL)
Here you find 106 models, 29 with images and 75 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
