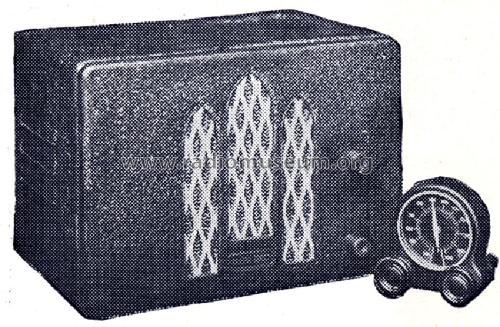

Autocrat Radio Co.;: TA [Radio] ID = 1379838 850x556
Select picture or schematic to display from thumbnails on the right and click for download.
For model TA, Autocrat Radio Co.; Chicago (IL):
Scanned from the Autocrat Radio Co. - Folder for 1936.

Country:  United States of America (USA)
Manufacturer / Brand:  Autocrat Radio Co.; Chicago (IL)
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 78 6A7 6B7 41 unknown_Tube
Main principle Super-Heterodyne (Super in general)
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: TA - Autocrat Radio Co.; Chicago IL
Shape Chassis only or for «building in»
Dimensions (WHD) 8.75 x 6 x 6.25 inch / 222 x 152 x 159 mm
Notes

Tunes from 540 to 1600 kc. The unknown tube is a V7, which we don't know.

Net weight (2.2 lb = 1 kg) 15.5 lb (15 lb 8 oz) / 7.037 kg
Price in first year of sale 33.95 $
Literature/Schematics (3) Autocrat Radio Co. - Folder for 1936.

Model page created by Ernst Erb. See "Data change" for further contributors.
