Mosport Signal Seeker
Autocrat Radio Ltd.; Auckland
- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Autocrat Radio Ltd.; Auckland
- Year
- 1971
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 351309
NZVRS (with permission)

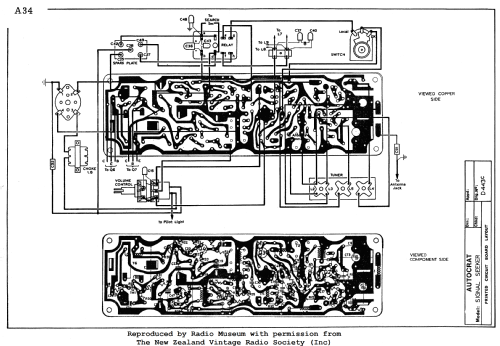

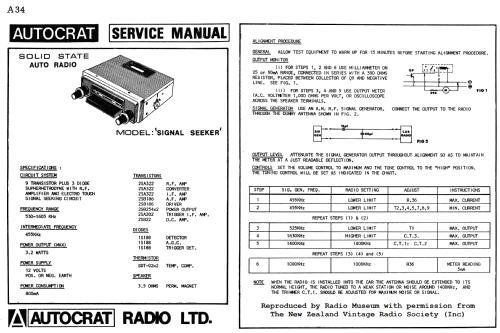

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 9
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 3.2 W (unknown quality)
- Material
- Metal case, TUBES VISIBLE
- from Radiomuseum.org
- Model: Mosport Signal Seeker - Autocrat Radio Ltd.; Auckland
- Shape
- Chassis only or for «building in»
- Notes
-
Autocrat Mosport Signal Seeker. 9-transistor broadcast (MW) superhet with RF stage car radio with Signal Seeking Tuning where at the push of a button, the next station on the dial is automatically found. 12 volt positive or negative earth.
- Price in first year of sale
- 89.95 NZ $
- Mentioned in
- -- Original prospect or advert (Press 18 October 1971 Page 17)
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
