- Country
- United States of America (USA)
- Manufacturer / Brand
- Automatic Radio Mfg. Co.; Boston (MA)
- Year
- 1954 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 101406

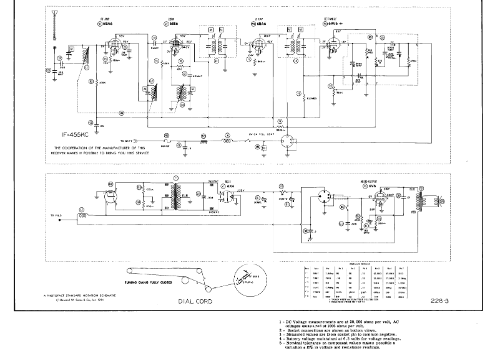

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Metal case
- from Radiomuseum.org
- Model: DM-132 - Automatic Radio Mfg. Co.;
- Shape
- Chassis only or for «building in»
- Notes
-
Automatic model DM-132 is a battery operated custom built automatic superheterodyne receiver. Model DM-132 is for 1953 Dodge Automobiles.
- Literature/Schematics (4)

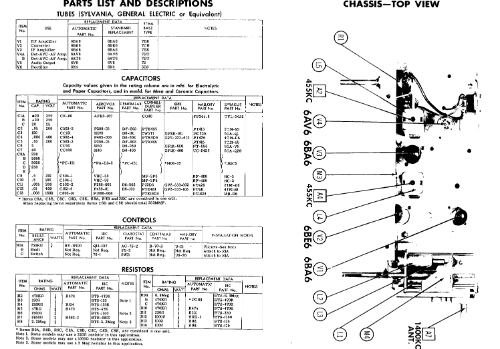

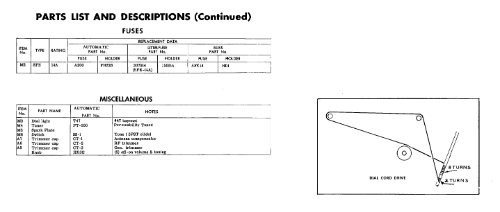

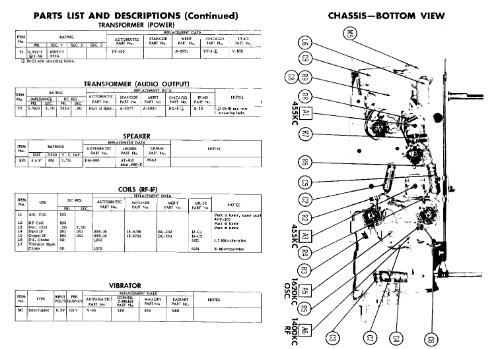

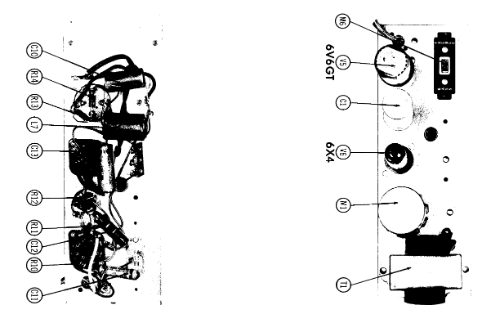

- Photofact Folder, Howard W. SAMS (Set 228, folder 3, dated 1-54)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
