• Year
  • 1948
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 33844

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 465 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 1.5 & 67.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • from Radiomuseum.org

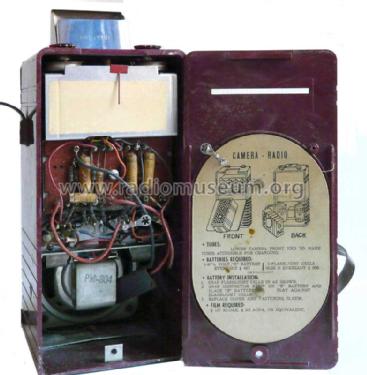

  • Model: Tom Thumb Camera - Automatic Radio Mfg. Co.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes
  • Built-in loop antenna; combined radio and camera.
  • External source of data
  • Ernst Erb

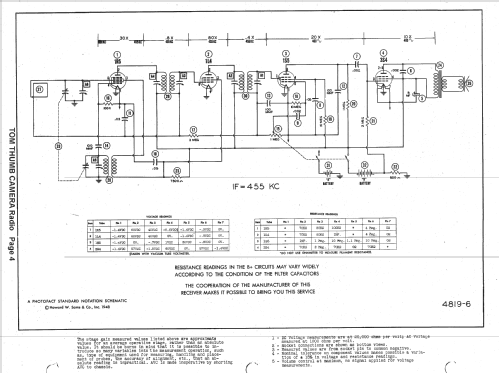

  • Circuit diagram reference
