Chasseral E75

Chasseral E75; Autophon AG inkl. (ID = 1250992) Radio

Chasseral E75; Autophon AG inkl. (ID = 2088527) Radio

Chasseral E75; Autophon AG inkl. (ID = 2088528) Radio

Chasseral E75; Autophon AG inkl. (ID = 2088529) Radio

Chasseral E75; Autophon AG inkl. (ID = 2088530) Radio
Chasseral E75; Autophon AG inkl. (ID = 449381) Radio Chasseral E75; Autophon AG inkl. (ID = 449382) Radio
Chasseral E75; Autophon AG inkl. (ID = 449383) Radio Chasseral E75; Autophon AG inkl. (ID = 29733) Radio
Chasseral E75; Autophon AG inkl. (ID = 29735) Radio Chasseral E75; Autophon AG inkl. (ID = 29736) Radio
Chasseral E75; Autophon AG inkl. (ID = 29734) Radio Chasseral E75; Autophon AG inkl. (ID = 449379) Radio
Chasseral E75; Autophon AG inkl. (ID = 449380) Radio
Use red slider bar for more.
Chasseral E75; Autophon AG inkl. (ID = 449381) Radio
Autophon AG inkl.: Chasseral E75 [Radio] ID = 449381 933x652
Select picture or schematic to display from thumbnails on the right and click for download.
For model Chasseral E75, Autophon AG (inkl. Téléphonie SA); Solothurn

Country:  Switzerland
Manufacturer / Brand:  Autophon AG (inkl. Téléphonie SA); Solothurn
Year: 1951–1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: EAF42 EAF42 ECC40 EL42 EL42 EZ40
Main principle TRF with diode detector
Wave bands Long Wave and/or Very Low Frequency (VLF).
Details Wired Wireless Receiver (RF!)
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
Power out
from Radiomuseum.org Model: Chasseral E75 - Autophon AG inkl. Téléphonie
Material Wooden case
Dimensions (WHD) 450 x 305 x 200 mm / 17.7 x 12 x 7.9 inch
Notes 450/20504*nur HF-TR, 5 Stationen
Net weight (2.2 lb = 1 kg) 7.3 kg / 16 lb 1.3 oz (16.079 lb)
Price in first year of sale 345.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

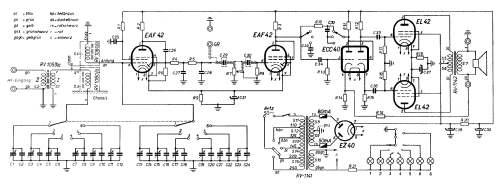

Circuit diagram reference Die Tungsram-Tabellen führen das Modell auf.


All listed radios etc. from Autophon AG (inkl. Téléphonie SA); Solothurn
Here you find 239 models, 178 with images and 146 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
