Handsprechfunkgerät SE 72-16-1

Handsprechfunkgerät SE 72-16-1; Autophon AG inkl. (ID = 2124761) TRX Handsprechfunkgerät SE 72-16-1; Autophon AG inkl. (ID = 2124762) TRX
Handsprechfunkgerät SE 72-16-1; Autophon AG inkl. (ID = 2124763) TRX Handsprechfunkgerät SE 72-16-1; Autophon AG inkl. (ID = 2124764) TRX
Handsprechfunkgerät SE 72-16-1; Autophon AG inkl. (ID = 2124765) TRX Handsprechfunkgerät SE 72-16-1; Autophon AG inkl. (ID = 2124766) TRX
Use red slider bar for more.

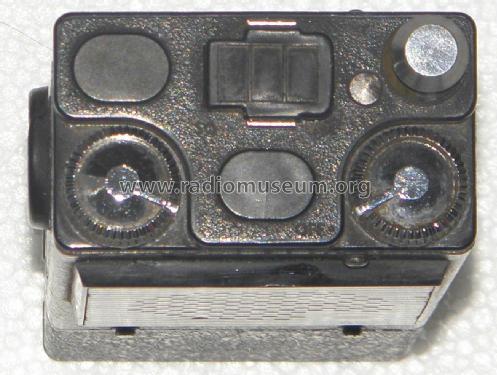

Handsprechfunkgerät SE 72-16-1; Autophon AG inkl. (ID = 2124761) TRX
Autophon AG inkl.: Handsprechfunkgerät SE 72-16-1 [TRX] ID = 2124761 745x1825
Select picture or schematic to display from thumbnails on the right and click for download.
For model Handsprechfunkgerät SE 72-16-1, Autophon AG (inkl. Téléphonie SA); Solothurn

Country:  Switzerland
Manufacturer / Brand:  Autophon AG (inkl. Téléphonie SA); Solothurn
Year: 1974 Category: Transmitter & Receiver (TRX not Amateur)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Transceiver
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Storage and/or dry batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out
from Radiomuseum.org Model: Handsprechfunkgerät SE 72-16-1 - Autophon AG inkl. Téléphonie
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 70 x 40 x 182 mm / 2.8 x 1.6 x 7.2 inch
Notes

Handfunkgerät, 1 Kanal im Bereich 138 - 174 MHz, Frequenzmodulation, Senderleistung 0,8 W. Zulassung für Deutschland FTZ-Nr. E-273/74.
Hergestellt von General Electric, USA.

Net weight (2.2 lb = 1 kg) 0.6 kg / 1 lb 5.1 oz (1.322 lb)

Model page created by Siegfried Droese. See "Data change" for further contributors.
