Imperator I-Aut Imperator I

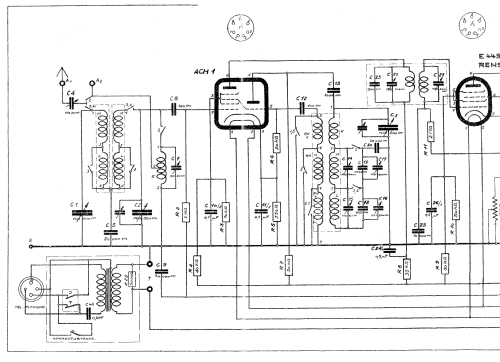

Imperator I-Aut Imperator I; Autophon AG inkl. (ID = 2093440) Radio

Imperator I-Aut Imperator I; Autophon AG inkl. (ID = 2093441) Radio

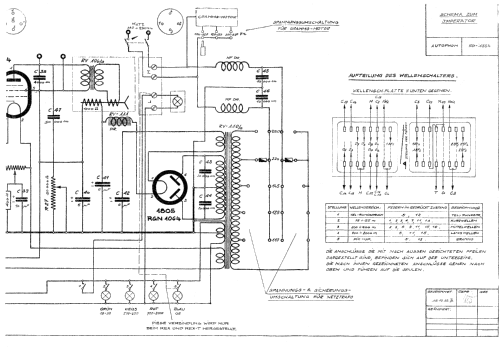

Imperator I-Aut Imperator I; Autophon AG inkl. (ID = 2093442) Radio
Imperator I-Aut Imperator I; Autophon AG inkl. (ID = 21450) Radio
Use red slider bar for more.
Imperator I-Aut Imperator I; Autophon AG inkl. (ID = 21450) Radio
Autophon AG inkl.: Imperator I-Aut Imperator I [Radio] ID = 21450 437x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Imperator I-Aut Imperator I, Autophon AG (inkl. Téléphonie SA); Solothurn

Country:  Switzerland
Manufacturer / Brand:  Autophon AG (inkl. Téléphonie SA); Solothurn
Year: 1934/1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ACH1 E449 E444 E443H 1805
Main principle Superheterodyne (common); ZF/IF 130 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details Wired Wireless Receiver(AF only)
Power type and voltage Alternating Current supply (AC) / 110-250 Volt
Loudspeaker Presumably Dynamic Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Imperator I-Aut Imperator I - Autophon AG inkl. Téléphonie
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 620 x 960 x 470 mm / 24.4 x 37.8 x 18.5 inch
Notes 1000/RD1425
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Die Tungsram-Tabellen führen das Modell auf.
