NF-Telefonrundspruch T6

NF-Telefonrundspruch T6; Autophon AG inkl. (ID = 2205620) Wired-W NF-Telefonrundspruch T6; Autophon AG inkl. (ID = 2205625) Wired-W
NF-Telefonrundspruch T6; Autophon AG inkl. (ID = 23333) Wired-W NF-Telefonrundspruch T6; Autophon AG inkl. (ID = 23335) Wired-W
NF-Telefonrundspruch T6; Autophon AG inkl. (ID = 1371) Wired-W NF-Telefonrundspruch T6; Autophon AG inkl. (ID = 2103811) Wired-W
NF-Telefonrundspruch T6; Autophon AG inkl. (ID = 2103813) Wired-W NF-Telefonrundspruch T6; Autophon AG inkl. (ID = 2103814) Wired-W
NF-Telefonrundspruch T6; Autophon AG inkl. (ID = 2103815) Wired-W NF-Telefonrundspruch T6; Autophon AG inkl. (ID = 2103816) Wired-W
Use red slider bar for more.
NF-Telefonrundspruch T6; Autophon AG inkl. (ID = 2205620) Wired-W
Autophon AG inkl.: NF-Telefonrundspruch T6 [Wired-W] ID = 2205620 891x1006
Select picture or schematic to display from thumbnails on the right and click for download.
For model NF-Telefonrundspruch T6, Autophon AG (inkl. Téléphonie SA); Solothurn:

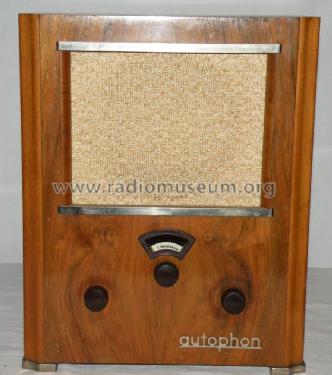

CH_Autophon_T 6_vue de face_coll. William FAGUE

Country:  Switzerland
Manufacturer / Brand:  Autophon AG (inkl. Téléphonie SA); Solothurn
Year: 1933/1934 Category: Wired Receiver (AF only)
Valves / Tubes 3: HP4100 PP4101 PV4100
Main principle Audio-Amplification; 2 AF stage(s)
Wave bands - without
Details Wired Wireless Receiver(AF only)
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 220; 250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: NF-Telefonrundspruch T6 - Autophon AG inkl. Téléphonie
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Die Tungsram-Tabellen führen das Modell auf.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
