411

411; Autovox SPA; Roma (ID = 358434) Radio
411; Autovox SPA; Roma (ID = 358753) Radio 411; Autovox SPA; Roma (ID = 358754) Radio
411; Autovox SPA; Roma (ID = 1966858) Radio 411; Autovox SPA; Roma (ID = 1966859) Radio
411; Autovox SPA; Roma (ID = 1966860) Radio
Use red slider bar for more.
411; Autovox SPA; Roma (ID = 358753) Radio
Autovox SPA; Roma: 411 [Radio] ID = 358753 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model 411, Autovox SPA; Roma

Country:  Italy
Manufacturer / Brand:  Autovox SPA; Roma
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK92 DF91 DAF91 DL92
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage and/or dry batteries / 6 & 67,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: 411 - Autovox SPA; Roma
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 210 x 150 x 60 mm / 8.3 x 5.9 x 2.4 inch
Notes Apparecchio portatile completo di alimentatore esterno per alimentazione da rete CA.
Portable radio, external power supply for AC mains (125, 160, 220 V) operation available.
Net weight (2.2 lb = 1 kg) 1.9 kg / 4 lb 3 oz (4.185 lb)
Source of data - - Data from my own collection

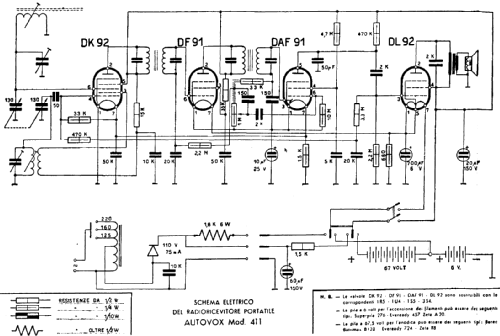

Literature/Schematics (1) -- Schematic (D.E. Ravalico, Il Radiolibro, 16° edizione, 1957, Hoepli)

Model page created by Alessandro Santinelli. See "Data change" for further contributors.
