Bikini RA441
Autovox SPA; Roma: Bikini RA441 [Car Radio] ID = 485643 933x445

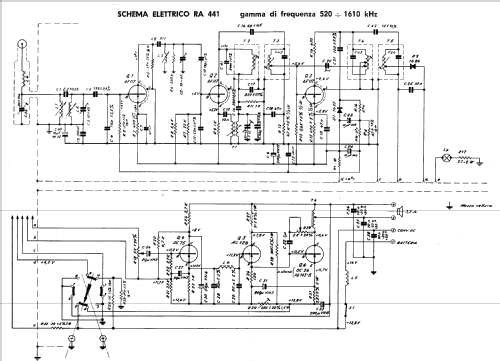

Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1964 ? | Category: Car Radio, perhaps also + sound player/recorder | ||||
| Semiconductors (the count is only for transistors) | 6: AF117 AF117 AF117 OC75 AC128 OC26 or. AD143 |
|---|
| Main principle | Superhet with RF-stage |
|---|---|
| Tuned circuits | 8 AM circuit(s) |
| Wave bands | Broadcast only (MW). |
| Details | |
| Power type and voltage | Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt |
| Loudspeaker | - This model requires external speaker(s). |
| Power out | 2 W (unknown quality) |
| from Radiomuseum.org | Model: Bikini RA441 - Autovox SPA; Roma |
| Material | Metal case |
| Shape | Chassis only or for «building in» |
| Notes | 2-teilig, je Teil 85×51×105 mm. Simile al mod. Bikini RA443, ma questo è per alimentazione a 12 volt. |
| Net weight (2.2 lb = 1 kg) | 1.4 kg / 3 lb 1.3 oz (3.084 lb) |
| Collectors' prices | |
| Source of data | -- Original-techn. papers. |
Model page created by Giovanni Cucuzzella. See "Data change" for further contributors.
