Gemini 650
Autovox SPA; Roma
- Country
- Italy
- Manufacturer / Brand
- Autovox SPA; Roma
- Year
- 1978 ??
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 294477
- Number of Transistors
- 15
- Semiconductors
- BD436 BD436 BC728 BC238 BC238 BC238 BC238 BF374 BF374 BF394 BF394 BF394 BF506 BF506 BF506 CA3089
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 7 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org

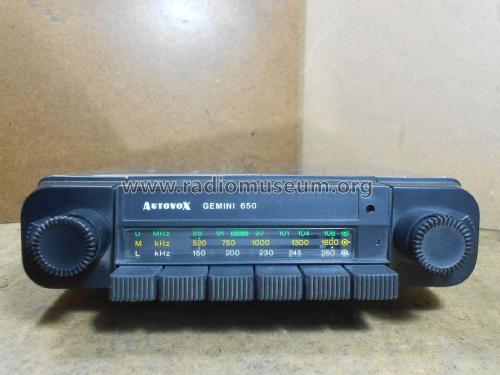

- Model: Gemini 650 - Autovox SPA; Roma
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 175 x 40 x 178 mm / 6.9 x 1.6 x 7 inch
- Notes
-
AUTOVOX Gemini mod. 650 - controllo volume/tono - 6 stazioni presintonizzabili - selettore gamme FM/MW/LW - impedenza altoparlante 3,2 Ω - trimmer regolazione sensibilità antenna frontale - montaggio con plancia estraibile.
- Net weight (2.2 lb = 1 kg)
- 1.1 kg / 2 lb 6.8 oz (2.423 lb)
- Author
- Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
