MA-754-A

MA-754-A; Autovox SPA; Roma (ID = 1661329) Car Radio MA-754-A; Autovox SPA; Roma (ID = 1661326) Car Radio
MA-754-A; Autovox SPA; Roma (ID = 1661331) Car Radio
Use red slider bar for more.
MA-754-A; Autovox SPA; Roma (ID = 1661329) Car Radio
Autovox SPA; Roma: MA-754-A [Car Radio] ID = 1661329 550x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model MA-754-A, Autovox SPA; Roma

Country:  Italy
Manufacturer / Brand:  Autovox SPA; Roma
Year: 1980 ?? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 27: BF208 BC327 AC188 BC209 BC205 AC187 BD162 AD262 64172 BF274 OA91 BA130 AA119 ZF7,5 ZF8,2
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast (MW) and Long Wave.
Details Cassette-Recorder or -Player
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 14 W (unknown quality)
from Radiomuseum.org Model: MA-754-A - Autovox SPA; Roma
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 180 x 52 x 167 mm / 7.1 x 2 x 6.6 inch
Notes Estereo salida 2x7W.
Sólo se ha listado un semiconductor por tipo.
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)

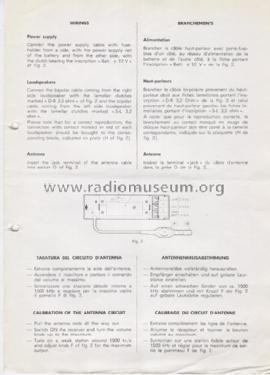

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
