Magic Drum PE11

Magic Drum PE11; Autovox SPA; Roma (ID = 494818) Radio

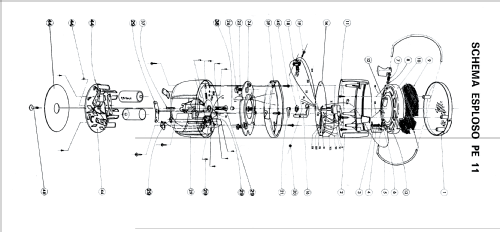

Magic Drum PE11; Autovox SPA; Roma (ID = 494823) Radio
Magic Drum PE11; Autovox SPA; Roma (ID = 1397309) Radio Magic Drum PE11; Autovox SPA; Roma (ID = 494817) Radio

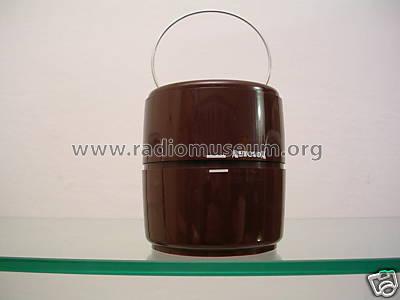

Magic Drum PE11; Autovox SPA; Roma (ID = 532508) Radio Magic Drum PE11; Autovox SPA; Roma (ID = 532510) Radio
Magic Drum PE11; Autovox SPA; Roma (ID = 852578) Radio Magic Drum PE11; Autovox SPA; Roma (ID = 852582) Radio

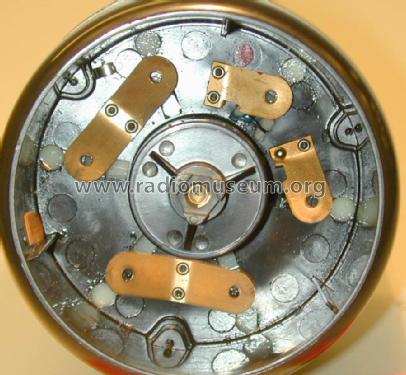

Magic Drum PE11; Autovox SPA; Roma (ID = 852585) Radio Magic Drum PE11; Autovox SPA; Roma (ID = 852586) Radio
Use red slider bar for more.
Magic Drum PE11; Autovox SPA; Roma (ID = 1397309) Radio
Autovox SPA; Roma: Magic Drum PE11 [Radio] ID = 1397309 500x804
Select picture or schematic to display from thumbnails on the right and click for download.
For model Magic Drum PE11, Autovox SPA; Roma

Country:  Italy
Manufacturer / Brand:  Autovox SPA; Roma
Year: 1971 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: BF271 1W8449 1W8450 1W8450 1W8450 BC113 BC113 TAA300 9_Autovox AA119 AA119
Main principle Superheterodyne (common); ZF/IF 10700 kHz
Wave bands FM Broadcast Band Only
Details
Power type and voltage Dry Batteries / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.3 W (unknown quality)
from Radiomuseum.org Model: Magic Drum PE11 - Autovox SPA; Roma
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Notes

MAGIC DRUM ellipse shape DC only radio, various colors known.Diameter 104 mm, height 110 mm.

Antenna circolare a scomparsa.

Net weight (2.2 lb = 1 kg) 0.870 kg / 1 lb 14.7 oz (1.916 lb)
Price in first year of sale 29'900.00 ITL
Source of data - - Manufacturers Literature
Mentioned in Funk-Technik (FT) (12/1971, S. 441 / Messebericht Hannover)

Model page created by Mario Coelho. See "Data change" for further contributors.
