• Country
• Italy

• Manufacturer / Brand
• Autovox SPA; Roma

• Year
• 1962

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 138183

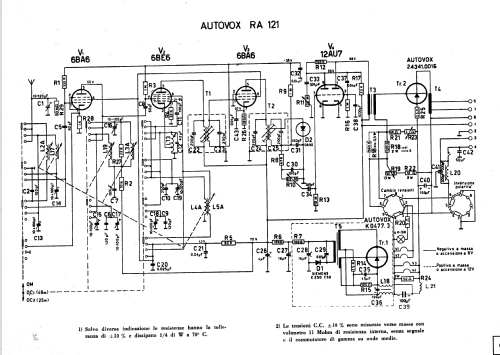

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• 6BA6 6BE6 6BA6 12AU7

• Number of Transistors
• 2

• Semiconductors
• OA90 E250C50

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: RA121 - Autovox SPA; Roma

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 192 x 79 x 152 mm / 7.6 x 3.1 x 6 inch

• Notes
• Broadcast plus two short-wave bands, 5.9 to 6.3 and 11.6 to 12.1 MHz; RF tuned amplifier. 5 push-button pre-settable channels.
  The radio also uses 1 x OA90 diode, 1 x 4341.0016 power out transistor, 1 x 4341.0013 switching transistor for the B+ inverter and 1 x E250C50 selenium rectifier.

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Price in first year of sale
• 121,000.00 ITL

• Source of data
• - - Manufacturers Literature

• Mentioned in
• -- Original prospect or advert (Listino prezzi Autovox, Quattroruote - Dicembre 1962)

• Author
• Model page created by Emilio Ciardiello. See "Data change" for further contributors.
