RA166E

RA166E; Autovox SPA; Roma (ID = 954894) Car Radio

RA166E; Autovox SPA; Roma (ID = 954895) Car Radio

RA166E; Autovox SPA; Roma (ID = 954896) Car Radio
Use red slider bar for more.
RA166E; Autovox SPA; Roma (ID = 954894) Car Radio

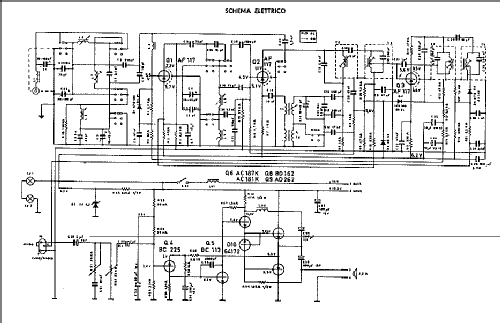

Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Italy
Manufacturer / Brand:  Autovox SPA; Roma
Year: 1970 ?? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 9: AF117 AF117 AF117 BC225 BC113 AC187 AC181 BD162 AD262
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: RA166E - Autovox SPA; Roma
Material Metal case
Shape Chassis only or for «building in»
Notes Apparecchio di dimensioni ridotte, sintonizzatore a induttori variabili. Cinque tasti di preselezione automatica delle stazioni. I primi tre per le OL, i rimanenti due per le OM. Presa per registratore esterno, giradischi o giranastri.

Model page created by Fabio Masetti. See "Data change" for further contributors.
