RA171/E

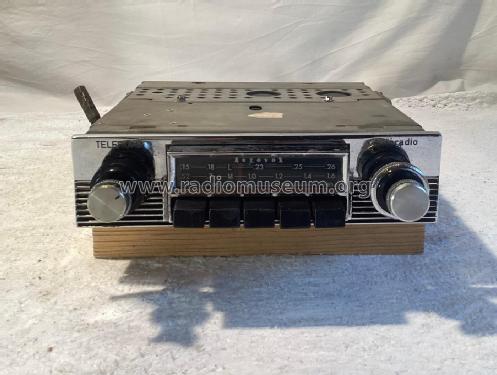

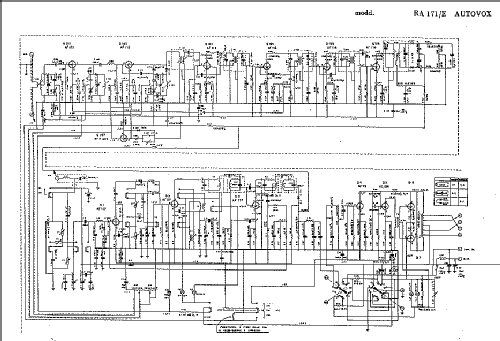

RA171/E; Autovox SPA; Roma (ID = 955394) Car Radio

RA171/E; Autovox SPA; Roma (ID = 955395) Car Radio
Use red slider bar for more.
RA171/E; Autovox SPA; Roma (ID = 955394) Car Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Italy
Manufacturer / Brand:  Autovox SPA; Roma
Year: 1970 ?? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 14: AF117 AF117 AF117 OC75 AC128 OC26 OC26 AF102 AF115 AF116 AF116 AF116 AF116 SFT337
schematic requested
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6-12 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: RA171/E - Autovox SPA; Roma
Material Metal case
Shape Chassis only or for «building in»
Notes Sintonia automatica con possibilità di predisporre cinque stazioni. Dimensioni del ricevitore (senza contenitore FM) 180 x 50 x 185 mm. Dimensioni del contenitore FM 180 x 50 x 30 mm. Peso 2,5 kg. Gamme di ricezione FM 87,5 - 104 MHz, OM 520 - 1610 kHz, OL 150 - 255 kHz.
External source of data Autovox

Model page created by Fabio Masetti. See "Data change" for further contributors.
