• Year
  • 1957/1958
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 144989

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 1.5 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: RA90 - Autovox SPA; Roma
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 160 x 60 x 100 mm / 6.3 x 2.4 x 3.9 inch
  • Notes

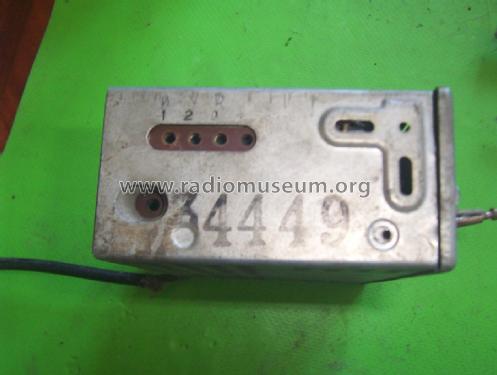

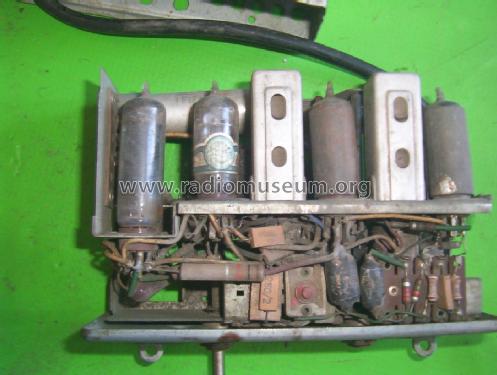

  • RA90 was made for the FIAT 600/B, while similar RA91 was ready for mounting in the 600 Multipla. Two blocks connected by four wires, one with the radio itself, the other with the power supply.
  • Mentioned in
  • -- Original prospect or advert
  • Author
  • Model page created by Emilio Ciardiello. See "Data change" for further contributors.

 Collections | Museums | Literature


The model is part of the collections of the following members.


Forum contributions about this model: Autovox SPA; Roma: RA90

Threads: 1 | Posts: 3


sto cercando di restaurare un esemplare dell'autoradio in oggetto, che purtroppo ha il vibratore del tutto non funzionante.

Si tratta di un vibratore sincrono marcato VS12 , con zoccolatura octal , previsto per funzionare a 12 V con negativo a massa.

Ho fatto varie ricerche in rete, fino ad ora senza esito.

Prima di ricorrere ad un possibile sostituto allo stato solido vorrei cercare di trovare un

elemento originale.

Grazie per l'attenzione


Mario Del Grande

Mario Del Grande, 25.May.17
