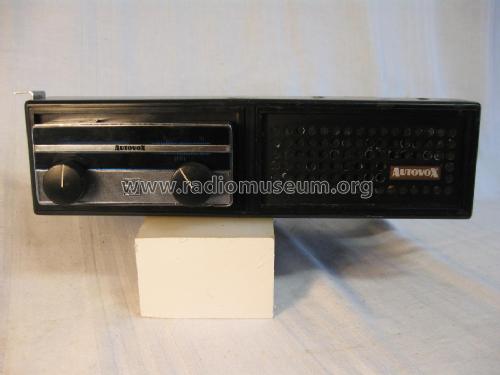

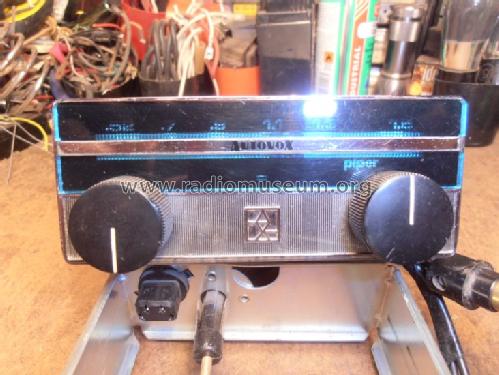

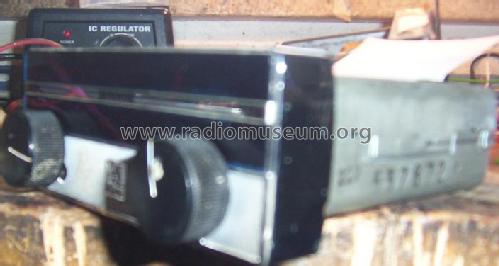

Piper RC222

Autovox SPA; Roma

  • Year
  • 1974 ?
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 169791

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 3
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 6 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Piper RC222 - Autovox SPA; Roma
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 92 x 38.5 x 120 mm / 3.6 x 1.5 x 4.7 inch
  • Notes
  • Ricevitore interamente transistorizzato con amplificatore audio a circuiti integrati.
    Gamma di ricezione: OM 520 ÷ 1610 kHz.
    Circuito integrato TBA 810-A
  • Net weight (2.2 lb = 1 kg)
  • 0.6 kg / 1 lb 5.1 oz (1.322 lb)
  • Literature/Schematics (1)
  • Schemario di Apparecchi a Transistori Vol. 14° R. Rosati
  • Author
  • Model page created by Eduard Abfalterer. See "Data change" for further contributors.
