• Year
  • 1964
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 216635

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Batteries / addl. power jack / 9 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org

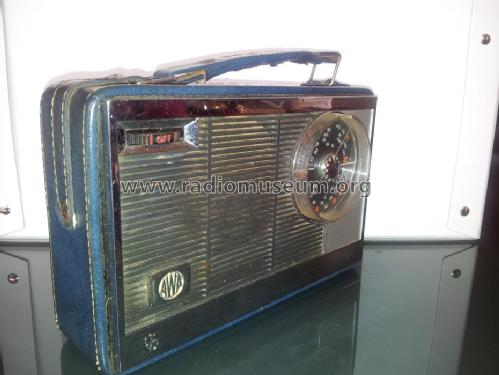

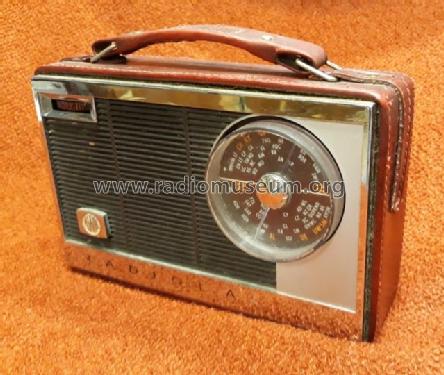

  • Model: Radiola Rover 7 B35 - Amalgamated Wireless
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 180 x 120 x 50 mm / 7.1 x 4.7 x 2 inch
  • Notes
  • Electrically indentical to AWA Model B30.

    Case colours available in Midnight Grey, Cherry Red, Olive Green, Pacific Blue & Buckskin.

  • Net weight (2.2 lb = 1 kg)
  • 0.871 kg / 1 lb 14.7 oz (1.919 lb)
  • Price in first year of sale
  • 26.25 AUS £
  • Literature/Schematics (1)
  • - - Manufacturers Literature (AWA Manufacturers Supervised Service.)
