unknown - inconnu
Azur (marque), Société Radio-Parisienne; Montreuil
- Country
- France
- Manufacturer / Brand
- Azur (marque), Société Radio-Parisienne; Montreuil
- Year
- 1955 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 355718

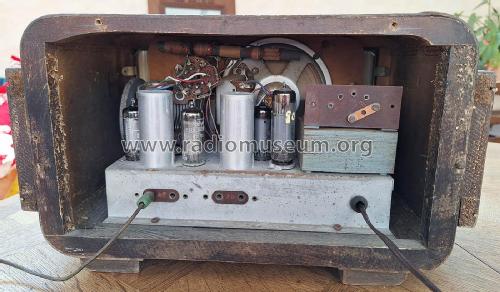

picture I took of a set I restored
picture I took of a set I restored
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: unknown - inconnu - Azur marque, Société Radio-
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 380 x 210 x 200 mm / 15 x 8.3 x 7.9 inch
- Notes
-
Uses a front-end assembly (in French "bloc d'accord") OREOR brand, ref. AF4R.
Built-in ferrite rod antenna for LW/MW.
- Author
- Model page created by Christian Don. See "Data change" for further contributors.
