- Country
- Great Britain (UK)
- Manufacturer / Brand
- Alba (Brand) Balcombe Ltd., ALBA (Radio & Television) Ltd; London
- Year
- 1957
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 103557
-
- Brand: Alba
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 470/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- AC/DC-set / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Alba 3312 - Alba Brand Balcombe Ltd., ALBA
- Shape
- Tablemodel, low profile (big size).
- Notes
-

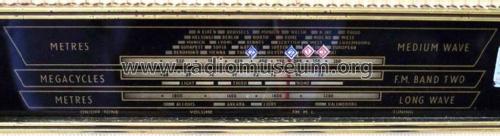

An AC/DC mains AM/FM table radio covering the MW (190 - 550 metres), LW (1000 - 2000 metres) and VHF (88 - 100 MHz) wavebands. Sockets for FM and AM aerials, gramophone pick-up and external loudspeaker. Released September 1957 price £21 4s 6d plus purchase tax.
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)

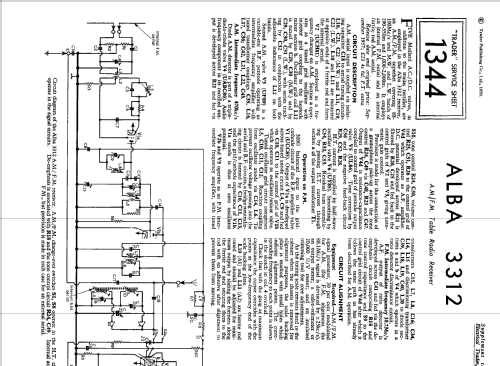

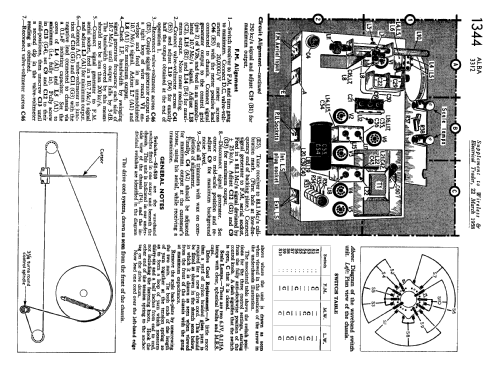

- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (1344 dated 22 March 1958)
- Literature/Schematics (2)
- Radio And Television Servicing books (R&TVS)
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
