Alba C116

Alba C116; Balcombe Ltd., Brand (ID = 562036) Radio

Alba C116; Balcombe Ltd., Brand (ID = 562037) Radio
Alba C116; Balcombe Ltd., Brand (ID = 416069) Radio Alba C116; Balcombe Ltd., Brand (ID = 802759) Radio
Alba C116; Balcombe Ltd., Brand (ID = 416071) Radio Alba C116; Balcombe Ltd., Brand (ID = 416070) Radio
Alba C116; Balcombe Ltd., Brand (ID = 416072) Radio Alba C116; Balcombe Ltd., Brand (ID = 2575753) Radio
Alba C116; Balcombe Ltd., Brand (ID = 2575756) Radio Alba C116; Balcombe Ltd., Brand (ID = 2575758) Radio
Alba C116; Balcombe Ltd., Brand (ID = 2575761) Radio
Use red slider bar for more.
Alba C116; Balcombe Ltd., Brand (ID = 416069) Radio
Balcombe Ltd., Brand: Alba C116 [Radio] ID = 416069 933x640
Select picture or schematic to display from thumbnails on the right and click for download.
For model Alba C116, Balcombe Ltd., (Brand: Alba), London:
Original colour was white.

Country:  Great Britain (UK)
Manufacturer / Brand:  Balcombe Ltd., (Brand: Alba), London
Brand

Alba
Year: 1957 ? Category: Broadcast Receiver - or past WW2 Tuner

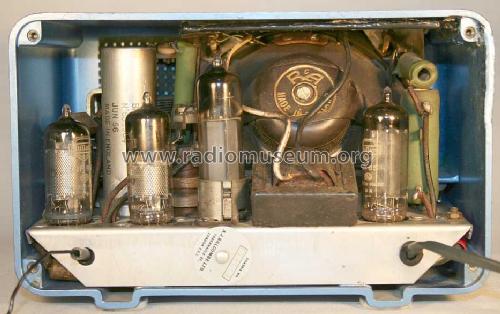

Valves / Tubes 4: UF89 UF80 UL41 UY85
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown); 1 AF stage(s)
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: Alba C116 - Balcombe Ltd., Brand: Alba,
Material Bakelite or Plastics (type unknown)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 8 x 5 x 4.5 inch / 203 x 127 x 114 mm
Notes A 2 band set with LW was also produced as model C116LW. The back cover of the C116 has a cut-out for the band change switch.
Net weight (2.2 lb = 1 kg) 1.7 kg / 3 lb 11.9 oz (3.744 lb)
Source of data - - Data from my own collection
Circuit diagram reference Radio and TV Servicing books (R&TVS) book

Model page created by Keith Staines. See "Data change" for further contributors.



All listed radios etc. from Balcombe Ltd., (Brand: Alba), London
Here you find 230 models, 102 with images and 165 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
