• Year
  • 1928
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 31000

 Technical Specifications

  • Number of Tubes
  • 2
  • Main principle
  • TRF with regeneration
  • Tuned circuits
  • 1 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Storage and/or dry batteries / 4 & 7 & 50 & 108 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case
  • from Radiomuseum.org

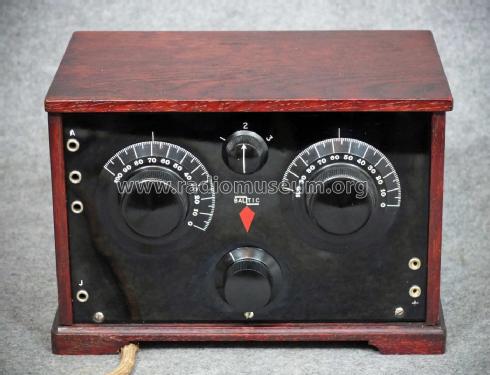

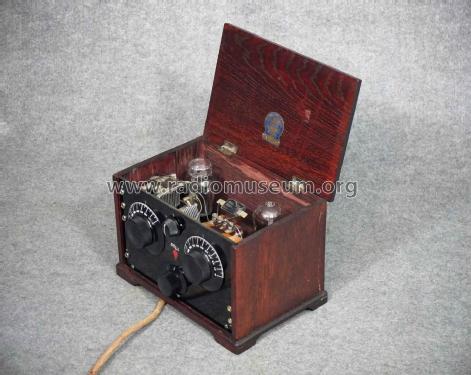

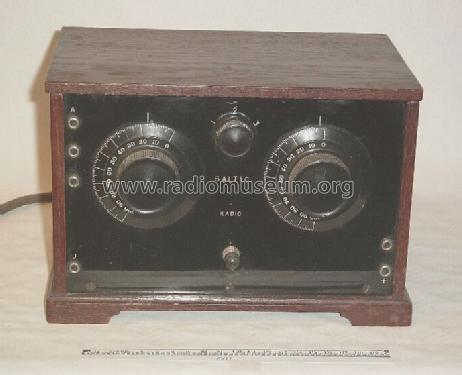

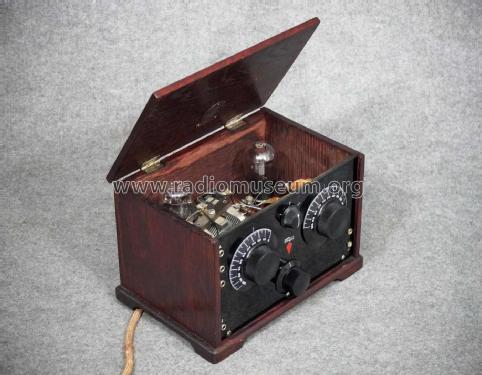

  • Model: KB 2 - Baltic; Stockholm
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 250 x 170 x 170 mm / 9.8 x 6.7 x 6.7 inch
  • Source of data
  • -- Collector info (Sammler)
