Maestro 637J

Maestro 637J; Barco, Belgian (ID = 2197361) Radio
Maestro 637J; Barco, Belgian (ID = 2186437) Radio Maestro 637J; Barco, Belgian (ID = 2186438) Radio
Maestro 637J; Barco, Belgian (ID = 2179676) Radio Maestro 637J; Barco, Belgian (ID = 2182508) Radio
Use red slider bar for more.

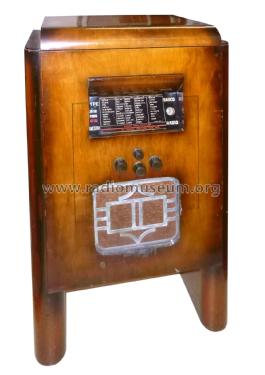

Maestro 637J; Barco, Belgian (ID = 2186437) Radio
Barco, Belgian: Maestro 637J [Radio] ID = 2186437 1393x1970
Select picture or schematic to display from thumbnails on the right and click for download.
For model Maestro 637J, Barco, Belgian American Radio Corporation / Cobar; Poperinge:
Picture taken in the VRT Omroepmuseum

Country:  Belgium
Manufacturer / Brand:  Barco, Belgian American Radio Corporation / Cobar; Poperinge
Year: 1937 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: 6D6 6A7 6D6 6B7 6G5 6V6 6V6 80
Main principle Superhet with RF-stage; ZF/IF 130 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 26 cm = 10.2 inch
Power out
from Radiomuseum.org Model: Maestro 637J - Barco, Belgian American Radio
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 580 x 1050 x 400 mm / 22.8 x 41.3 x 15.7 inch
Notes

The brand of the loudspeaker is Douglas, a house product of Barco.

Th remains of the pick-up in the model shown here is a Dual, but probably not the original.

Model page created by Georges Van Campenhout. See "Data change" for further contributors.
