Tempo Tone Radio Commode Ch= 610 With doors
Barker Bros.; Los Angeles, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- Barker Bros.; Los Angeles, CA
- Year
- 1939 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 351774
-
- Brand: Tempotone

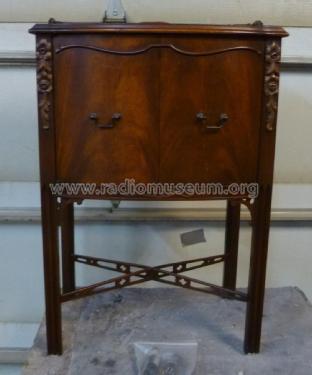

Tempo-Tone 610 Front, closed

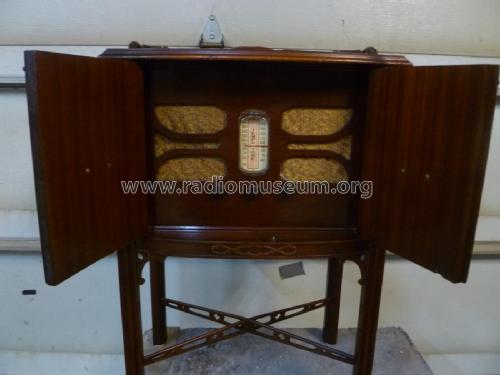

Tempo-tone 610 front, doors open
Tempo-Tone 610 left
Tempo-Tone 610 right
Tempo-Tone 610 Top
Tempo-Tone 610 rear
Tempo-Tone dial
LA Times ad from 1939
Photo used by permission of owner
Photo used by permission of owner.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 2 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 105 - 125 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- Power out
- 3.2 W (4.5 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Tempo Tone Radio Commode Ch= 610 [With doors] - Barker Bros.; Los Angeles, CA
- Shape
- Console, Highboy (legs > 50 %).
- Dimensions (WHD)
- 21 x 31 x 14 inch / 533 x 787 x 356 mm
- Notes
-
Chassis manufactured by Gilfillan Bros of Los Angeles. Marketed by Barker Brothers of Los Angeles. Barker Brothers, Schoenfelds, Standard Furniture, John Breuner Co., and Powers Furniture, established a buying association called Commercial Associates Inc., circa 1926 according to Furniture Record, page 84, from January 1926, so it could have been sold by any of those merchants. Cabinet manufactured by Weiman Furniture of Rockford, IL.
- Author
- Model page created by Michael Boessen. See "Data change" for further contributors.
