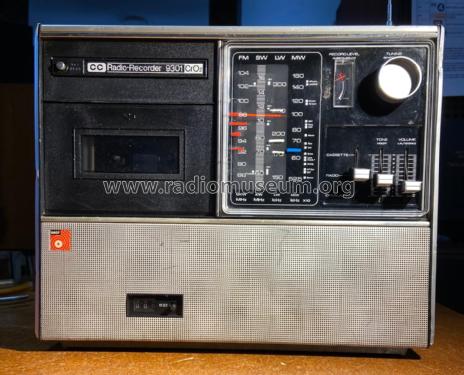

CC Radio-Recorder 9301

CC Radio-Recorder 9301; BASF, Badische (ID = 2149068) Radio
CC Radio-Recorder 9301; BASF, Badische (ID = 131648) Radio CC Radio-Recorder 9301; BASF, Badische (ID = 449650) Radio
CC Radio-Recorder 9301; BASF, Badische (ID = 449649) Radio CC Radio-Recorder 9301; BASF, Badische (ID = 449648) Radio
CC Radio-Recorder 9301; BASF, Badische (ID = 603760) Radio CC Radio-Recorder 9301; BASF, Badische (ID = 1530942) Radio
CC Radio-Recorder 9301; BASF, Badische (ID = 1530947) Radio CC Radio-Recorder 9301; BASF, Badische (ID = 1530954) Radio
CC Radio-Recorder 9301; BASF, Badische (ID = 1530956) Radio CC Radio-Recorder 9301; BASF, Badische (ID = 1779074) Radio
Use red slider bar for more.
CC Radio-Recorder 9301; BASF, Badische (ID = 131648) Radio
BASF, Badische: CC Radio-Recorder 9301 [Radio] ID = 131648 659x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model CC Radio-Recorder 9301, BASF, Badische Anilin- & Soda-Fabrik; Ludwigshafen

Country:  Germany
Manufacturer / Brand:  BASF, Badische Anilin- & Soda-Fabrik; Ludwigshafen
Year: 1973/1974 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 14: 2SC369 2SC732 2SC372 2SC372 2SC372 2SC372 2SC372 2SB415 2SB415 2SB56 2SB56 2SC380 2SC380 2SC380
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 110; 220 / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 9 cm = 3.5 inch
Power out 1.2 W (unknown quality)
from Radiomuseum.org Model: CC Radio-Recorder 9301 - BASF, Badische Anilin- & Soda-
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 299 x 250 x 90 mm / 11.8 x 9.8 x 3.5 inch
Notes

Verwendbar für Chromdioxid-Kassetten.

Monitor 1+2 , Tone + Lautstärke Schieberegler, Bandzählwerk

Net weight (2.2 lb = 1 kg) 3.4 kg / 7 lb 7.8 oz (7.489 lb)
Collectors' prices
External source of data Erb
Source of data Katalog RFP 1973 / Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.
Documents about this model
  Serviceanleitung 3411 KB
