• Country
• Germany

• Manufacturer / Brand
• Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim

• Year
• 1969–1971

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 27759

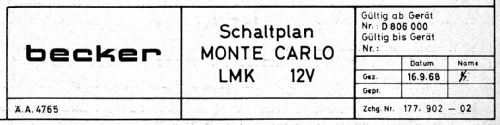

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 6

• Semiconductors
• AF126 AF126 AF126 AF126 AD161 AD162 TAA435 AA119 AA119

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 5 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Monte Carlo LMK [ab Nr. D806000] - Becker, Max Egon,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 180 x 52 x 150 mm / 7.1 x 2 x 5.9 inch

• Notes

• Anschlüsse für Automatikantenne und KW-Adapter.

  Abweichend von diesem Modell Monte Carlo LMK 12V ab D806000 mit IC TAA435 -
  zeigt Becker im Jahr '68 das "Vorläufer-Modell" Monte Carlo LMK 6/12V ab D800001
  mit 2 Transistoren in der NF-Vorstufe (AC125 und AC117).

• Net weight (2.2 lb = 1 kg)
• 1.7 kg / 3 lb 11.9 oz (3.744 lb)

• External source of data
• erb

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Handbuch VDRG 1969/1970 (und 1970/71)

• Literature/Schematics (1)
• -- Original-techn. papers.
