- Country
- Germany
- Manufacturer / Brand
- Becker, Max Egon, Autoradiowerk Ittersbach bei Pforzheim
- Year
- 1950 ?
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 14016
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org

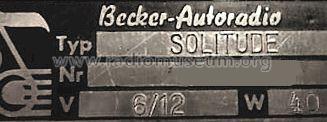

- Model: Solitude - Becker, Max Egon,
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 195 x 105 x 360 mm / 7.7 x 4.1 x 14.2 inch
- Notes
- Lautsprecher mit 18 cm Ø im Lieferumfang.
- Net weight (2.2 lb = 1 kg)
- 5 kg / 11 lb 0.2 oz (11.013 lb)
- External source of data
- E. Erb 3-907007-36-0
- Source of data
- Radiokatalog Band 2, Ernst Erb
- Circuit diagram reference
- Lange Schaltungen der Funkindustrie, Buch 1
