- Country
- People's Republic of China
- Manufacturer / Brand
- Beijing 北京无线电器材厂 Beijing Radio Equipment Factory; Beijing
- Year
- 1960 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 179606
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 9
- Main principle
- Superheterodyne (common); ZF/IF 465 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 100; 110; 125; 150; 180; 200; 220; 245 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

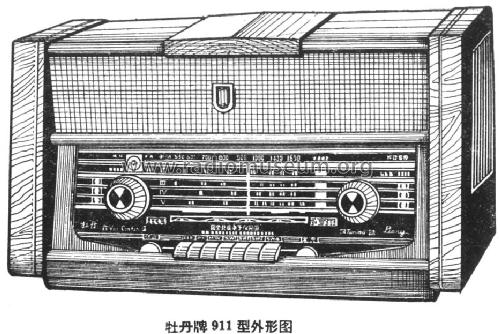

- Model: Peony 牡丹 911 - Beijing 北京无线电器材厂 Beijing Radio
- Shape
- Tablemodel with Push Buttons.
- Notes
- The model Peony 牡丹 911 (Mudan) receives broadcast band 520 - 1600 kc and SW 1.6 - 5.1 mc, 5 - 12 mc, 11.7 - 17.9 plus 17.7 - 26.2 mc. On page 114 one can see the manufacturer Beijing Electronic Instrument Factory 北京电子仪器厂 but the same manufacturer can be written in different ways (probably in different times) - like 北京市广播器材厂 or 北京市无线电器材厂 or 北京市电子仪器厂 or 北京市无线电厂.
- Literature/Schematics (1)
- 11-Radio manual (green 2) 1965, with 220 pages. (page 114.)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
