Counter and Timer 6155

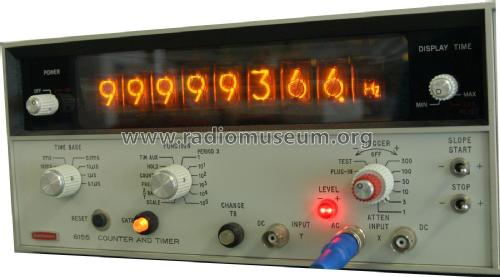

Counter and Timer 6155; Beckman Instruments, (ID = 1981017) Equipment Counter and Timer 6155; Beckman Instruments, (ID = 1981498) Equipment
Counter and Timer 6155; Beckman Instruments, (ID = 1981499) Equipment
Use red slider bar for more.
Counter and Timer 6155; Beckman Instruments, (ID = 1981017) Equipment

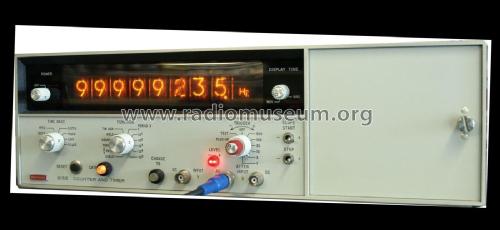

Beckman Instruments,: Counter and Timer 6155 [Equipment] ID = 1981017 1400x645
Select picture or schematic to display from thumbnails on the right and click for download.
For model Counter and Timer 6155, Beckman Instruments, Shasta, Shockley; Richmond (CA)

Country:  United States of America (USA)
Manufacturer / Brand:  Beckman Instruments, Shasta, Shockley; Richmond (CA)
Year: 1969 Category: Service- or Lab Equipment
Valves / Tubes 8: NL842 NL867
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle none
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 115/230 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Counter and Timer 6155 - Beckman Instruments, Shasta,
Material Metal case
Shape Rack
Dimensions (WHD) 19 x 5.25 x 16.625 inch / 483 x 133 x 422 mm
Notes

Range: 0Hz - 100MHz
Gate Time: 1 µS to 10 seconds in decade steps.
Time Base: 1MHz less than 3parts in 109 per 24 hours
Display: 8 Inline digits of glow-tube display 99,999,999 max
Tubes: 8x NL842, 1x NL867


Plug-In Units:

605B Prescaler up to 400MHz
607 Heterodyne Converter cover 100MHz to 1GHz
607-4 Heterodyne Converter 50 to 520Mhz
609 Heterodyne Converter 952Mhz to 3.002 GHz
613 Heterodyne Converter 3Ghz to 12.4 GHz
613A Heterodyne Converter Certified to 70mV
625 10nS Time Base Multiplier 0.1 µS to 10nS
640 Preamplifier 1mV rms and provide 40dB gain
651 Voltage to Frequency Converter convert the 6155 to digital voltmeter (0.1 to 1000V)





Net weight (2.2 lb = 1 kg) 30 lb 0 oz (30 lb) / 13.620 kg
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Pius Steiner. See "Data change" for further contributors.
