Eput & Timer 6148

Beckman Instruments, Shasta, Shockley; Richmond (CA)

Data
Forum
Pictures
Collections

  • Year
  • 1968 ?
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 361489

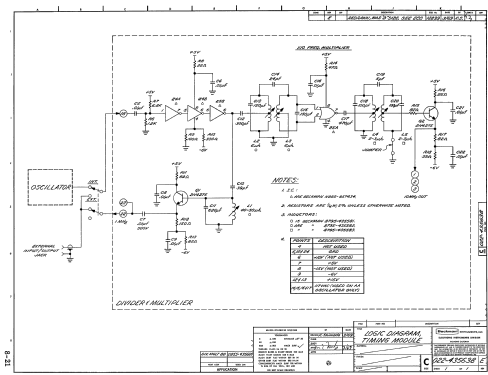

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 115; 230 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Eput & Timer 6148 - Beckman Instruments, Shasta,
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 19 x 5.25 x 16.75 inch / 483 x 133 x 425 mm
  • Notes

  • The Beckman Model 6148 EPUT and Timer measures frequency, period, time interval, and frequency ratio through a basic frequency range of 0 to 100 MHz.

    The Model 6148 accepts Beckman EID 600 series plug-in extenders, including Models 605B, 607, 609, 613, 625, 640, and 651. These plug-ins extend the measurement range of the EPUT and Timer to 12.4 GHz and increase the unit's input sensitivity to 1 mVrms.

  • Net weight (2.2 lb = 1 kg)
  • 25 lb (25 lb 0 oz) / 11.350 kg
  • Mentioned in
  • -- Original-techn. papers.
  Eput & Timer 6148 Operating and Servicing Manual 5738 KB
  • Documents regarding this model
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
