AC Bridge BR-8

AC Bridge BR-8; Belco, Tokyo (ID = 111292) Equipment

AC Bridge BR-8; Belco, Tokyo (ID = 111293) Equipment

AC Bridge BR-8; Belco, Tokyo (ID = 111294) Equipment

AC Bridge BR-8; Belco, Tokyo (ID = 111295) Equipment

AC Bridge BR-8; Belco, Tokyo (ID = 111296) Equipment

AC Bridge BR-8; Belco, Tokyo (ID = 669245) Equipment
AC Bridge BR-8; Belco, Tokyo (ID = 111290) Equipment AC Bridge BR-8; Belco, Tokyo (ID = 111291) Equipment
AC Bridge BR-8; Belco, Tokyo (ID = 1410773) Equipment AC Bridge BR-8; Belco, Tokyo (ID = 1410774) Equipment
Use red slider bar for more.
AC Bridge BR-8; Belco, Tokyo (ID = 111290) Equipment
Belco, Tokyo: AC Bridge BR-8 [Equipment] ID = 111290 794x679
Select picture or schematic to display from thumbnails on the right and click for download.
For model AC Bridge BR-8, Belco, Tokyo

Country:  Japan
Manufacturer / Brand:  Belco, Tokyo
Year: 1968 ?? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: AC Bridge BR-8 - Belco, Tokyo
Material Plastics (no bakelite or catalin)
Dimensions (WHD) 182 x 128 x 75 mm / 7.2 x 5 x 3 inch
Notes Belco L-C-R Messbrücke BR-8.
Bereiche: Widerstand 0,1 Ω...11,1 MΩ; Kondensator 10 pF...1110 µF, Induktivität 1 µH...111 H; Turn Ratio 10-1/10000.
Net weight (2.2 lb = 1 kg) 1 kg / 2 lb 3.2 oz (2.203 lb)
Price in first year of sale 199.00 DM

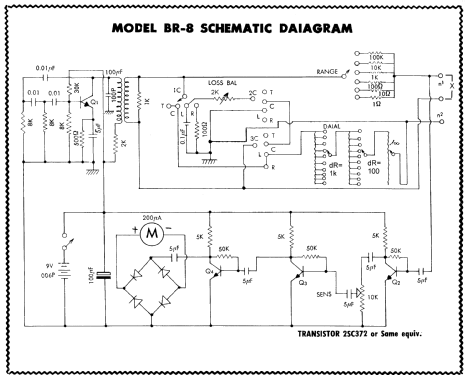

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Egon Penker. See "Data change" for further contributors.
