• Country
• Italy

• Manufacturer / Brand
• Belform; (dove? where?)

• Year
• 1968 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 284156

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECC85 ECH81 EF89 ECL86

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

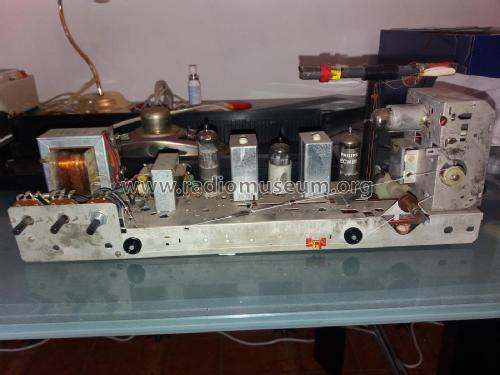

• Model: Eurostile R3 [4 tubes] - Belform; dove? where?

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 500 x 185 x 150 mm / 19.7 x 7.3 x 5.9 inch

• Notes

• Manufactured by Mivar.
  See also Belform Eurostile r3 with 5 tubes.

• Author
• Model page created by Piermaurizio Lovisolo. See "Data change" for further contributors.
