• Country
• Belgium

• Manufacturer / Brand
• Bell Telephone Mfg. Co. (Radiobell); Antwerp

• Year
• 1934/1935

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 147746

• • Brand: Radiobell

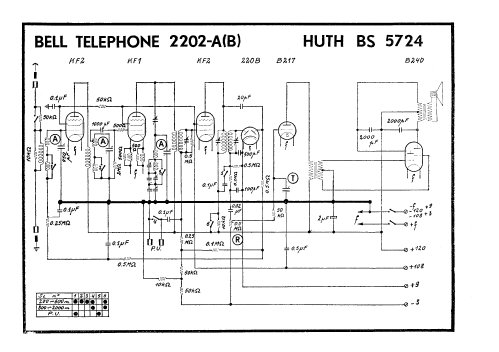

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• KF2 KF1 KF2 220B B217 B240

• Main principle
• Superhet with RF-stage; ZF/IF 125 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 4 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Batterie 2202A - Bell Telephone Mfg. Co.

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Notes
• Codex J.V. BS5624.

  Is likely to be model Radiobell 6 Batterie.

• Price in first year of sale
• 2,650.00 BFR

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Gidi Verheijen. See "Data change" for further contributors.
