Radiobell 337 (337A) 5 tubes

Radiobell 337 ; Bell Telephone Mfg. (ID = 1057880) Radio Radiobell 337 ; Bell Telephone Mfg. (ID = 1057881) Radio
Radiobell 337 ; Bell Telephone Mfg. (ID = 1057882) Radio Radiobell 337 ; Bell Telephone Mfg. (ID = 1742063) Radio

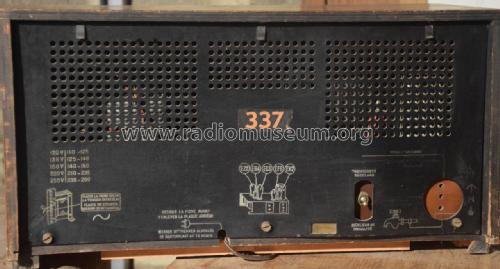

Radiobell 337 ; Bell Telephone Mfg. (ID = 1742066) Radio
Use red slider bar for more.
Radiobell 337 ; Bell Telephone Mfg. (ID = 1057880) Radio
Bell Telephone Mfg.: Radiobell 337 [Radio] ID = 1057880 501x305
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiobell 337 (337A) 5 tubes, Bell Telephone Mfg. Co. (Radiobell); Antwerp:
Courtesy Etienne Drappier.

Country:  Belgium
Manufacturer / Brand:  Bell Telephone Mfg. Co. (Radiobell); Antwerp
Brand

Radiobell
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: EK2 EF6 EB4 EL3 EZ2
Main principle Super-Heterodyne (Super in general); ZF/IF 435 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 120; 135; 150; 220; 250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Radiobell 337 [5 tubes] - Bell Telephone Mfg. Co.
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes See also Radiobell 337A [4 tubes].
Codex J.V. AS3426.
Mentioned in "Radio Schakelingen" (J.G.R. van Dijck)

Model page created by Mark Hippenstiel. See "Data change" for further contributors.
