Radiobell 756S

Radiobell 756S; Bell Telephone Mfg. (ID = 1707843) Radio
Use red slider bar for more.
Radiobell 756S; Bell Telephone Mfg. (ID = 1707843) Radio
Bell Telephone Mfg.: Radiobell 756S [Radio] ID = 1707843 883x446
Select picture or schematic to display from thumbnails on the right and click for download.
For model Radiobell 756S, Bell Telephone Mfg. Co. (Radiobell); Antwerp

Country:  Belgium
Manufacturer / Brand:  Bell Telephone Mfg. Co. (Radiobell); Antwerp
Brand

Radiobell
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8:
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 115-210 Volt
Loudspeaker 5 Loudspeakers
Power out
from Radiomuseum.org Model: Radiobell 756S - Bell Telephone Mfg. Co.
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 1374 x 960 x 425 mm / 54.1 x 37.8 x 16.7 inch
Notes

Record changer de Luxe Stereo with 4 speeds. Additional space for tape recorder or bar.

Push-pull output stage.

Price in first year of sale 29'500.00 BEF

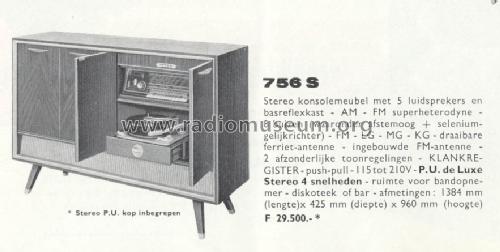

Mentioned in -- Original prospect or advert

Model page created by Georges Van Campenhout. See "Data change" for further contributors.
